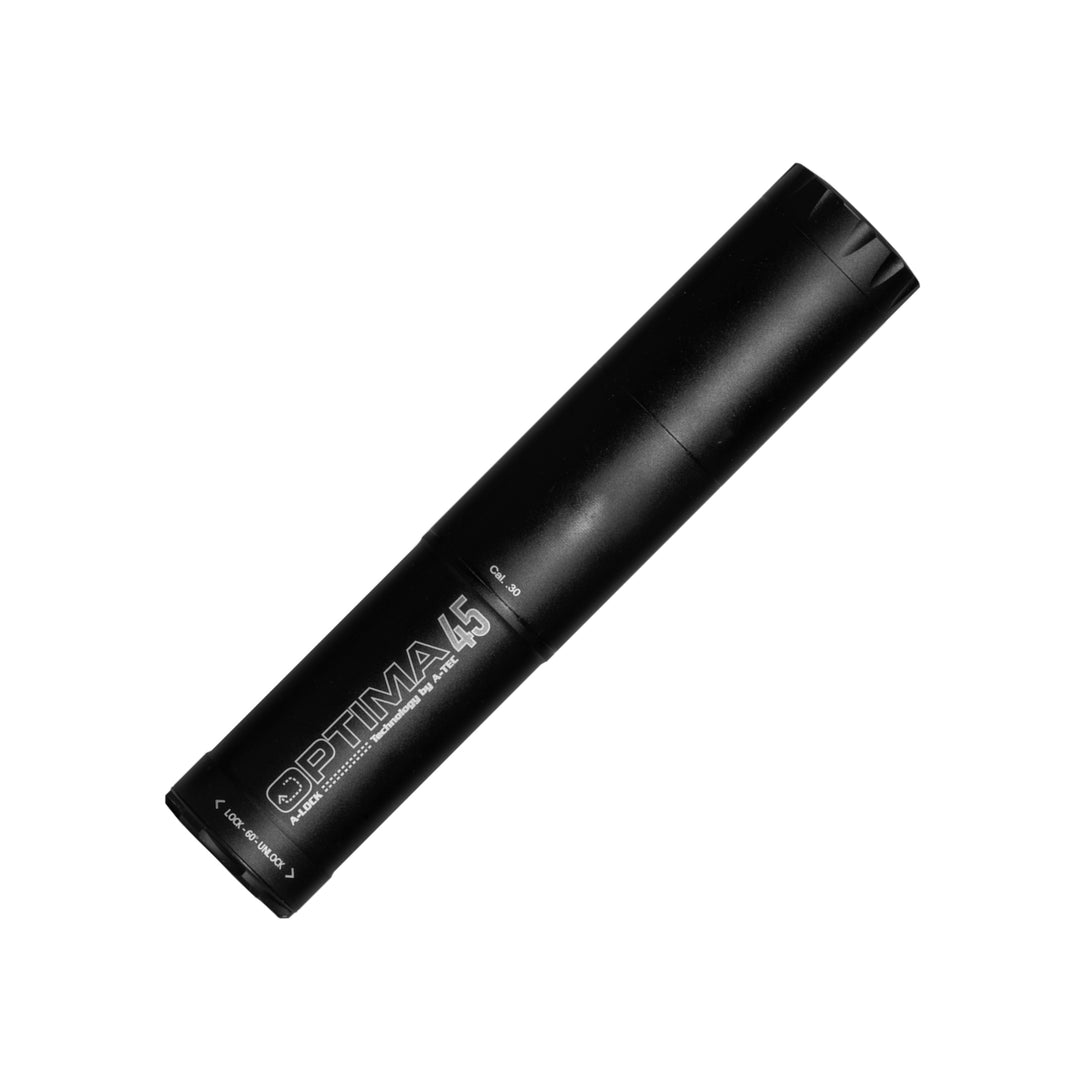

OPTIMA 45 SUPPRESSOR

Where to buy in store: Stockists

BEST PERFORMANCE HUNTING SUPPRESSOR IN ITS WEIGHT CLASS ON THE MARKET

The A-TEC Optima 45 is engineered to be an ideal balance of performance vs weight for active hunting. Thanks to intelligent baffle design and material selection, it provides excellent noise reduction and durable longevity.

Intended Use

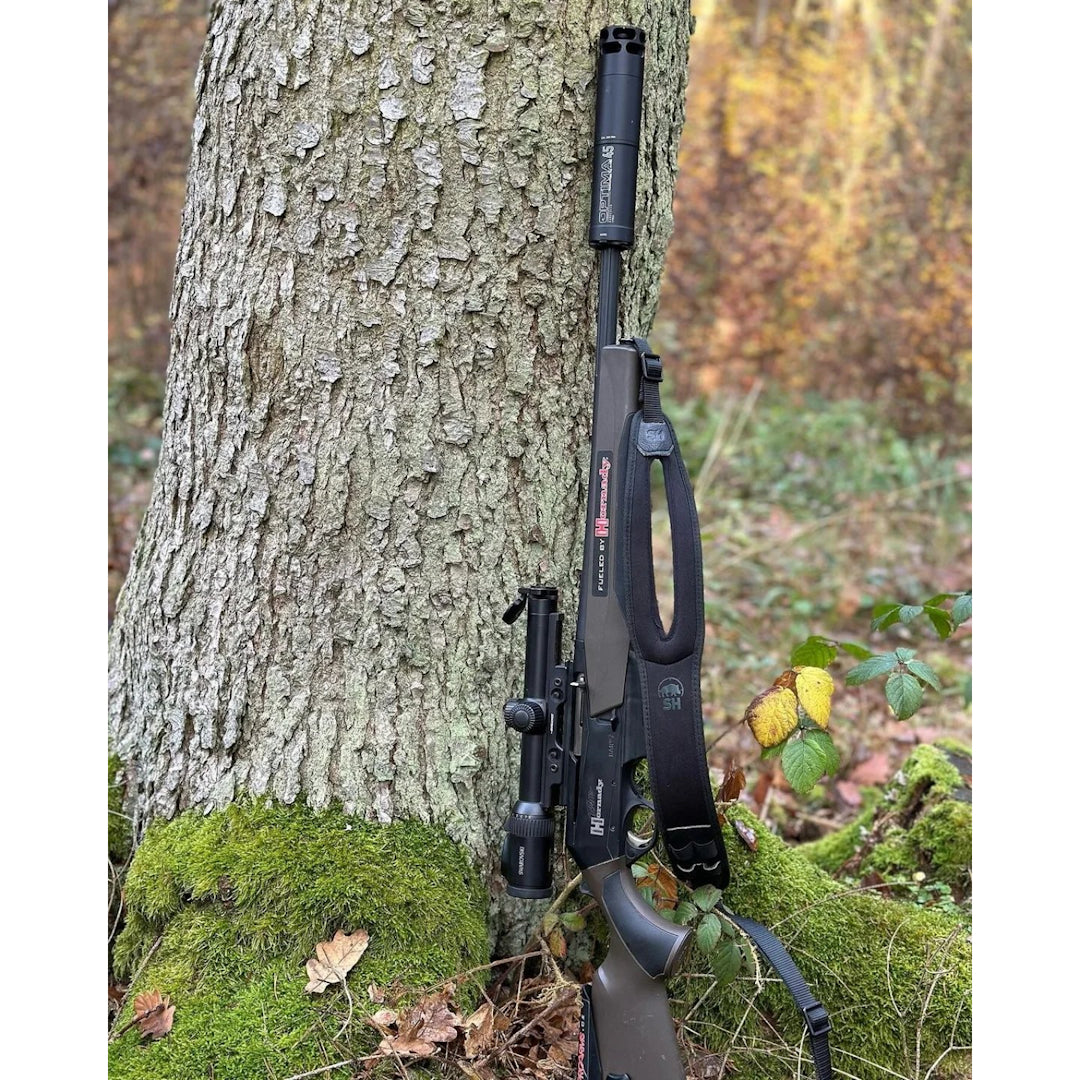

Lightweight design ideal for alpine hunting with standard and magnum energy calibres such as 270Winchester, 6.5PRC and 7mm Rem Mag. This suppressor is intended for hunting situations where shot strings are a few shots at a time and the temperature of the unit is kept under control. Combined with its optional brake endcap it can provide exceptional recoil and muzzle flip reduction, ideal for shooting from steep awkward positions in the mountains.

Design Features

• Stainless steel boss section and finely machined stainless steel baffle core provides remarkable durability for such a light weight design. Super lightweight Aluminium alloy body completes an light weight suppressor.
• The suppressor features a built-in first stage stainless steel muzzle brake which traps gas for recoil reduction and eliminates excessive erosion of the alloy components.
• 45mm diameter body is an ideal balance between size and performance and suits the lines, balance and mass of most hunting rifles.
• This unit is designed for any calibre up to magnums such as 6.5PRC or 7mm Rem Mag capacity, pressure and heat. In its weight class it shines for noise and recoil reduction.

  • Caution must be exercised with magnum calibres to keep the temperature of the unit down by limiting shot strings to a few shots.

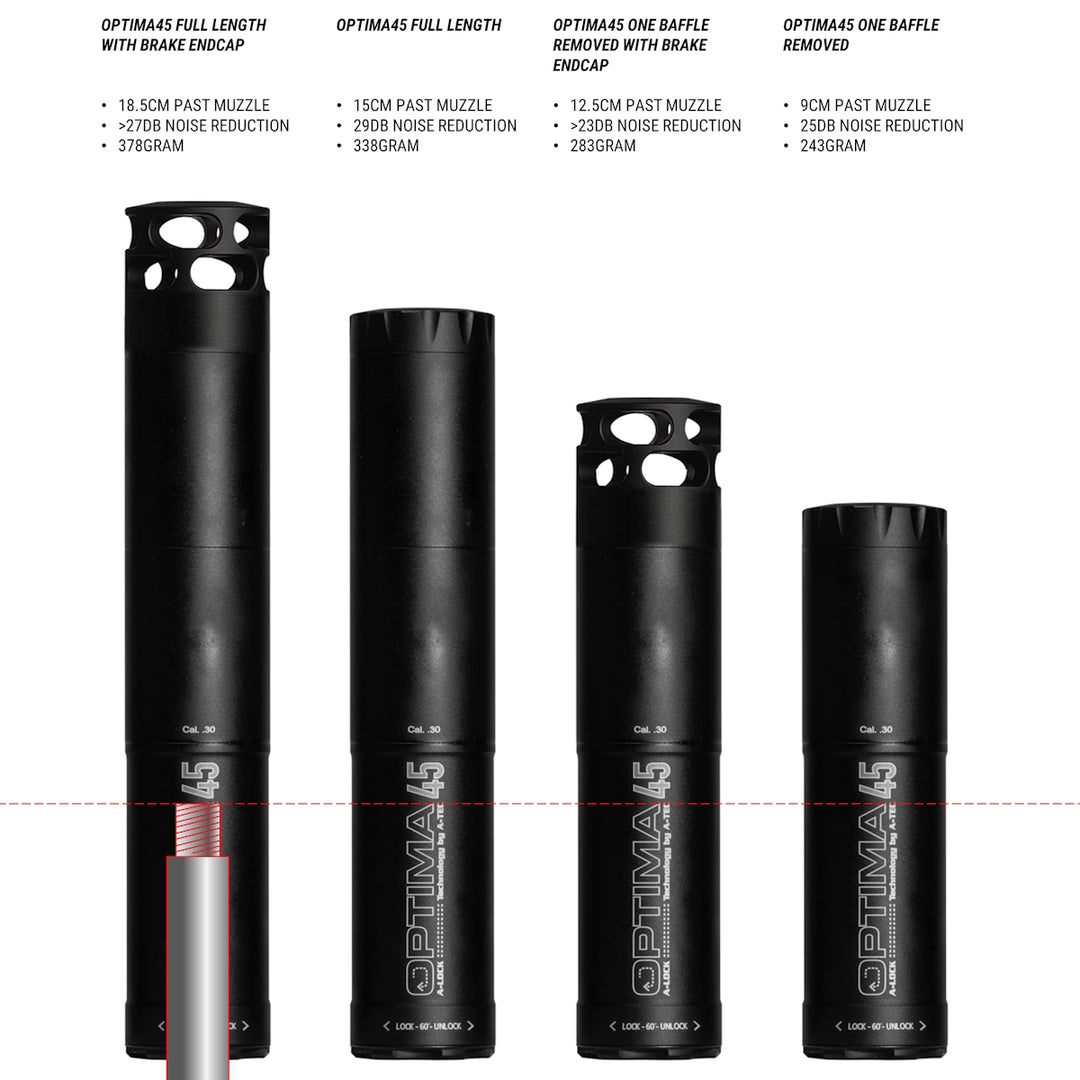

• Modular design makes it possible to subtract or add a module to choose your desired length & weight to noise reduction ratio.
  • Removing a module decreases the noise reduction effect by 3-5dB; depending on the calibre and barrel length.
• This product makes use of our A-Lock thread adaptor system. Any thread is supported.
  • See link below to add an A-Lock to your order, it is not included.
  • The A-Lock can be affixed to your rifle muzzle allowing quick attach/detach of the suppressor. It also provides the ability to use the same suppressor across multiple rifles all with different threads (an A-Lock for each muzzle is required for this and with calibres up to that of the suppressor).
  • The A-Lock can instead be locked into the suppressor and the unit attached and detached like legacy suppressors (we prefer to do this for you by special request to ensure it is correct before use).

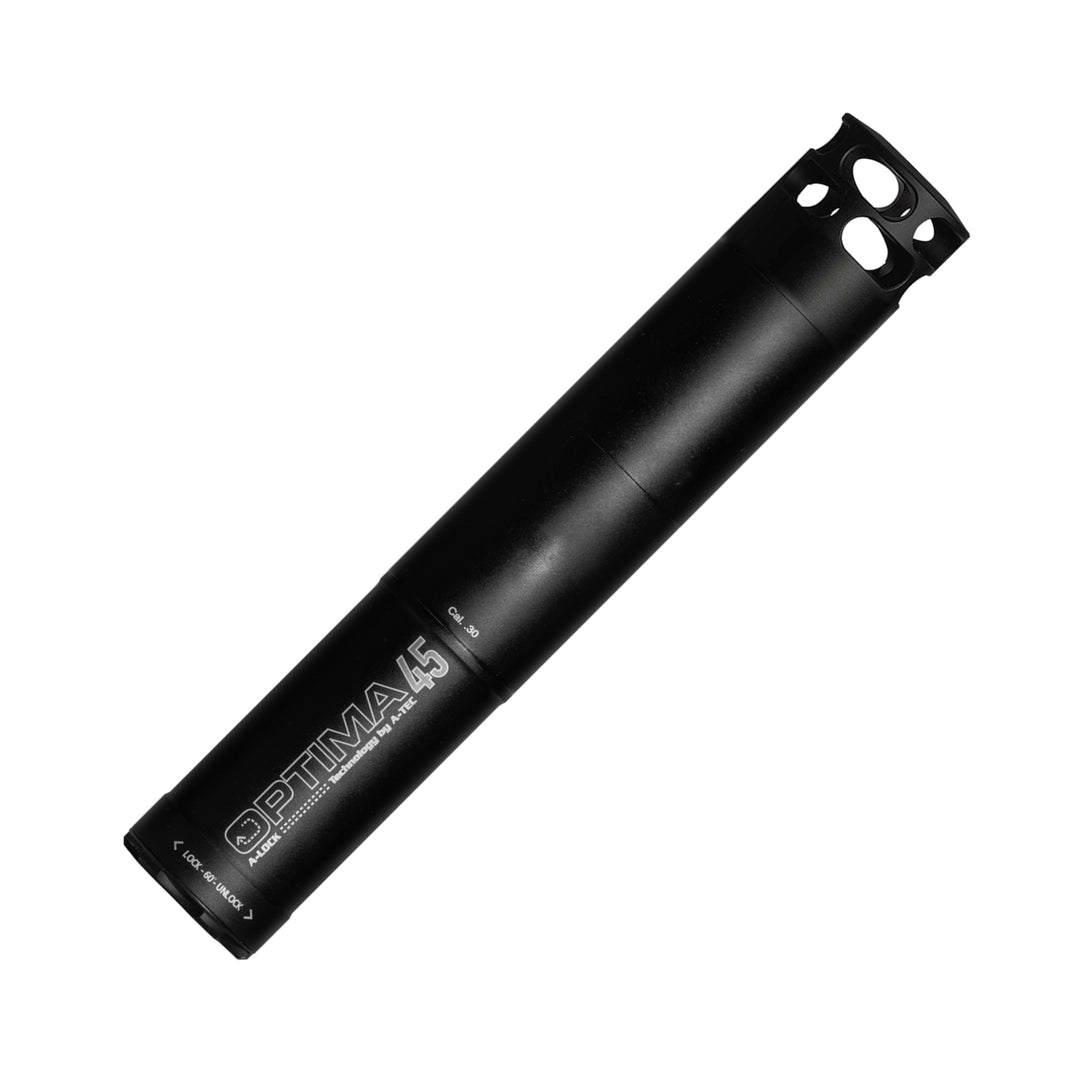

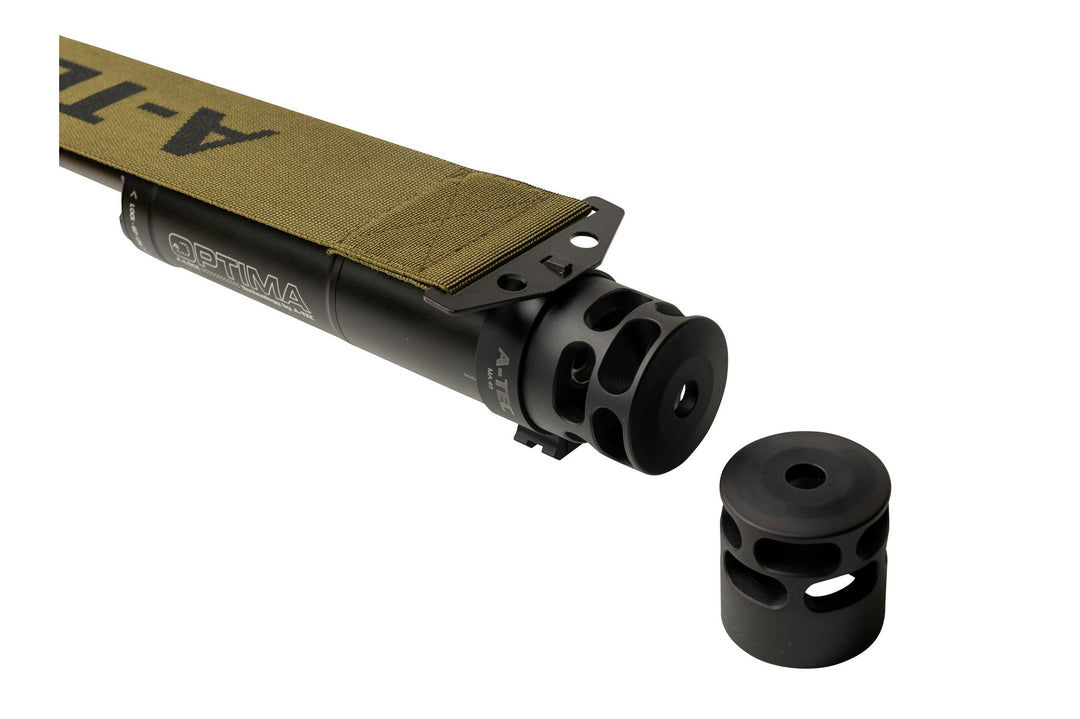

• This suppressor can accept our optional Brake Endcap.
  • See link below to add the Brake Endcap to your order, it is not included.

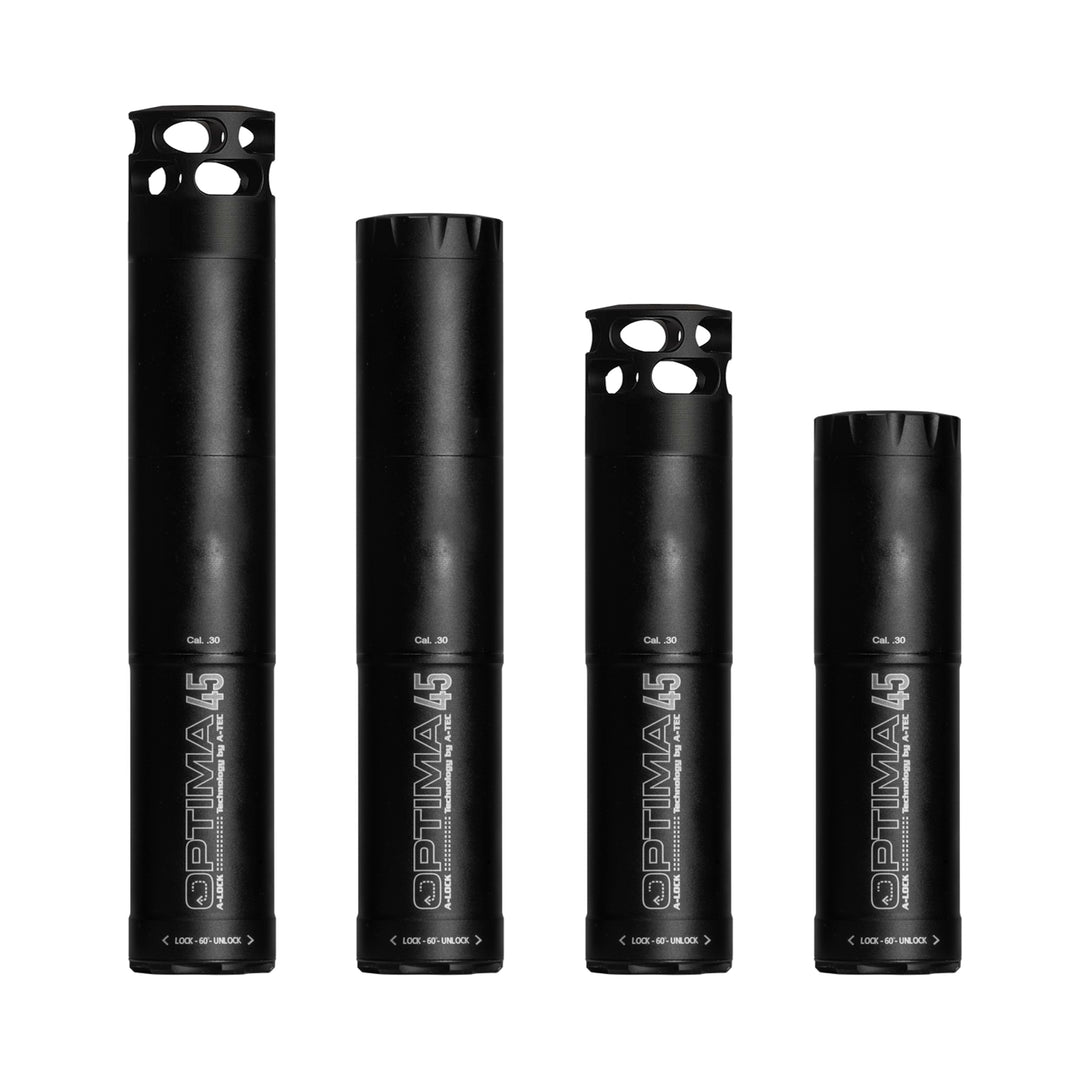

    • The images show the suppressor with it attached at various lengths for comparison purposes.

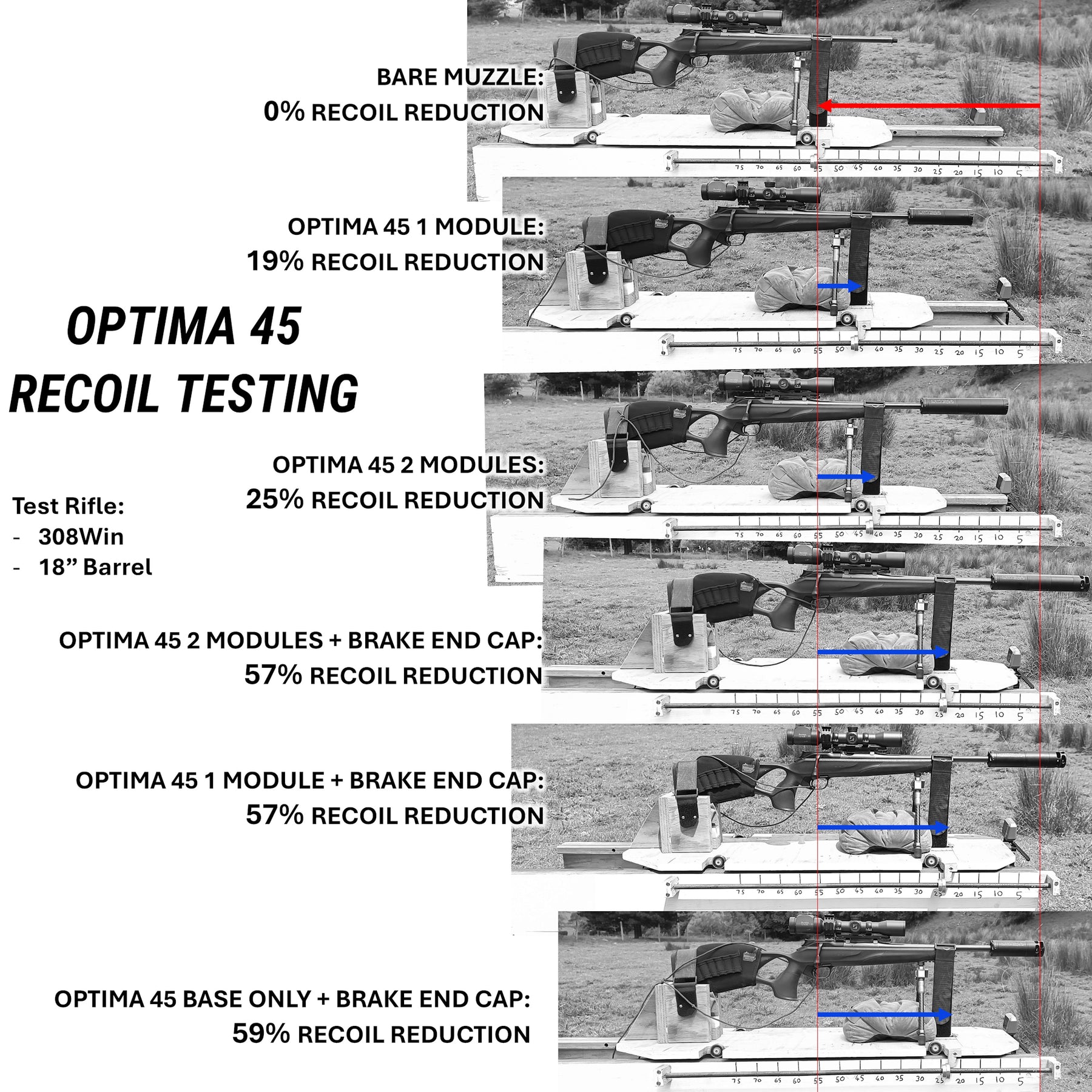

  • The Brake Endcap significantly reduces recoil and even more significantly straightens out muzzle flip so that you can keep the target in sight through the recoil pulse. The effect is quite phenomenal.
  • The Brake Endcap increases noise by 1-2dB depending on factors such as the number of suppressor modules fitted, calibre and barrel length.

• Overbarrel(reflex) design with free-floating overbarrel section specifically designed not to affect barrel harmonics.
• Important note on reduction performance: Unique to A-Tec, our suppressors are tested to the latest MIL-STD-1474D military standard which is the most stringent and difficult standard to test to. Research shows our competitors do not test to this standard. For comparing to competitors products we prefer to let our reputation do the talking but you will observe our suppressors performing 5-10% better for a stated dB and significantly better for dB reduction vs weight & length.
• A-Tec have only one grade of precision: Match Grade. A-Tec suppressors are second to none for concentricity, straightness and fine dimensional tolerances. This is especially evident in our bore apertures which are tight to the projectile to maximise sound reductive effect. To get peak performance from an A-Tec suppressor, one's rifle muzzle must be correctly crowned, threaded and shouldered.

Specifications

What comes in the box?

1. Suppressor
2. Rear bushing (use only if desired for aesthetics or to reduce foreign items getting into the rear area of the suppressor)
3. Instruction manual
4. Currently shipped in tough plastic case

Be sure to add a A-Lock. Add a Brake Endcap if maximum recoil control is desired.

A-Tec Rifle Suppressor Quick Reference

In selecting your new suppressor for your purpose; consider your desired balance of effect vs. weight, size and heat resistance. Click image for a close-up:

How does this compare to the rest of our range?

Check out our Giant Suppressor Comparison Document

Add a Brake Endcap to your suppressor

Click here to add a brake endcap to your Optima 45

Add your A-Lock Adaptor for your muzzle thread

Click here to add your A-Lock Adaptor

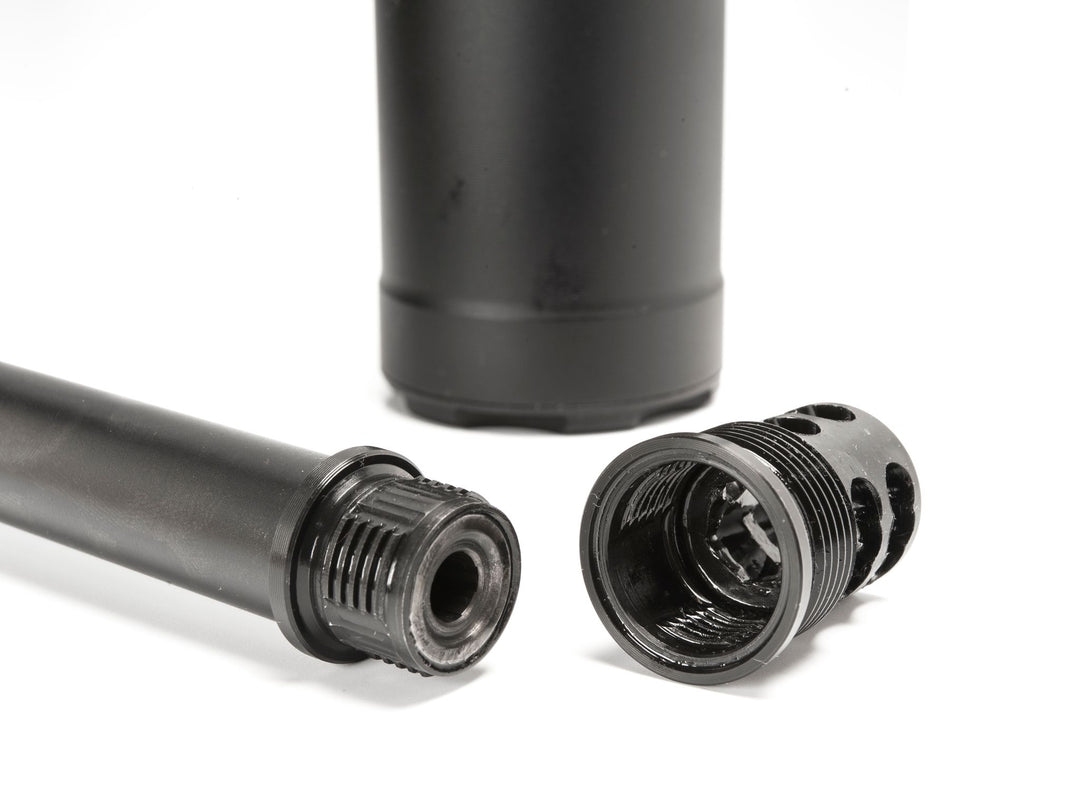

A-Lock Adaptor detailed design

It's a revolution in how you think about attaching your suppressor.

This unit can be used in two ways:

• Adaptor locked on to the muzzle thread
  • This allows the Optima and H2 suppressor to be quick attached and detached in a second with a forceful 1/4 turn.
  • This allows a single suppressor to be shared amongst multiple rifles all with different threads. In this case the calibre of the suppressor must be equal or greater than the largest calibre rifle.
  • This means the adaptor is on the end of the muzzle, maybe affecting it's aesthetic if it is a thin barrel
• Adaptor locked inside the suppressor
  • This allows the suppressor to be attached using muzzle threads like legacy suppressors.
  • When the suppressor is removed, nothing is left on the barrel.
  • We prefer to do this for you to ensure quality.

This requires a firearms licence to purchase; this must be presented on pick up, or for the item to be couriered to you a firearms mail order form is required.

We will contact you after purchase with the appropriate form and what is required.
