TRANSFORM YOUR THINKING
STOCK FEATURES
Rigidity
Machined from a single billet of 7075 T6 Aluminium the chassis is extremely strong and rigid for precise shot placement.
QD Sling
The butt stock has attachment receptacle for Tactical style slings on both sides.
Side Fold
Optional additional side fold mechanism, to instantly reduce the length of the stowed rifle. The Side Fold unit replaces the spacer section shown and can be set up for right or left fold.
Bag Rider
Bag Rider M-Lok attachment point compatible with MDT bag riders.
Comb
Adjustable for height and lateral. Additional accessory available to adjust fore aft positioning.
Butt pad
Soft rubber buttpad. Butt frame adjustable for height and length of pull with quick action levers.
Receiver Features
R8x Magazines
R8x magazines hold ten rounds in the stated calibre. They slot neatly into the receiver with release catches on both sides of the magazine. Additionally any other R8 magazine insert can be inserted into the magazine body allowing proper function with non R8x standard calibres.
Sling Mounts
Sling QD points are located on both sides of the receiver for tactical style slinging.
Adjustable Trigger
Precision Akila two stage trigger allows user adjustment from 400-1200gm (0.88- 2.64lb, 14-42oz).
Removable grip
The front grip can be removed and picatinny or ARCA rails can be attached instead.
Solid Bedding
One piece of solid 7075 T6 Aluminium is used to create the receiver creating a rigid bedding surface for the barrel. Any R8 barrel can be attached to the standardised mounting surface.
Perfect feeding
The R8x magazine employs a spring loaded feed lip which raise the next round up into line with the bore when the bolt is retracted. The next round feeds directly to the chamber without scarring on feed ramps.
ERGONOMIC FREEDOM
The receiver includes an excellent grip but is also compatible with any aftermarket grip using the common AR attachment standard.

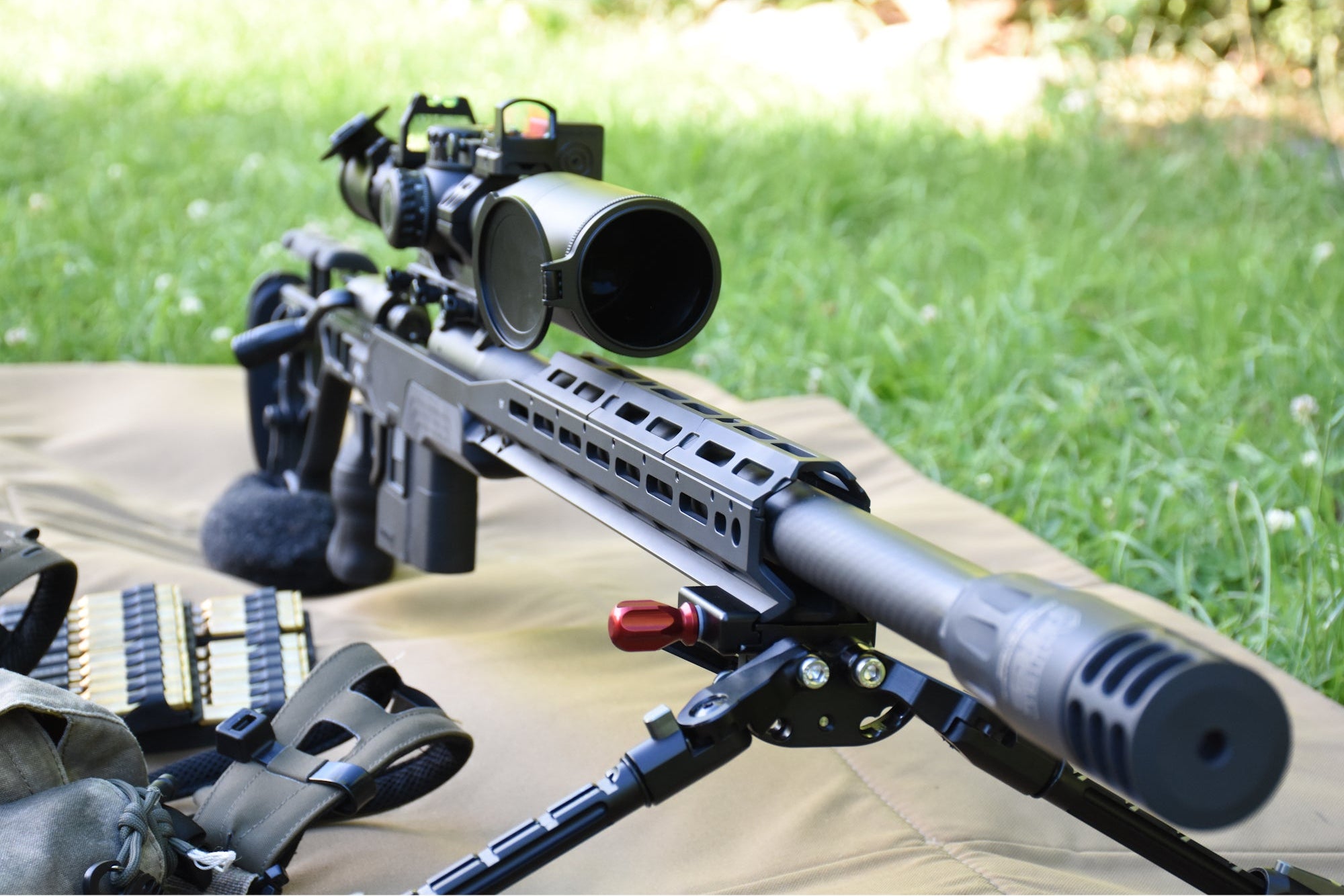

Forend Features
ARCA
Full length rigid ARCA rail allows your ideal positioning of tripods and bipods.
Sling Attachment
QD sling attachment for tactical style slings.
M-LOK
All surfaces have multiple M-LOK slot interfaces for mounting your perfect combination of accessories such as weights and grips.
Perfect forend diameter
The forend allows full 31mm diameter bull barrels to be mounted within it while still being nice in the hand.
Hand guards
The ACSR8x comes with one hand guard module and two more can be fitted for near total coverage of the barrel. All feature M-Lok attachment slots.
Barricade Stop
The built in barricade stop aids building stable positions and fits perfectly with a support bag.
Calibres
Calibres supported directly by R8x magazines at 10 rounds capacity:
Nr 19 mag
308Win, 6.5 Creedmoor, 25 Creedmoor, 6XC, 243Win, 6 Creedmoor, 6GT, 6 Dasher and similar.
Nr 20 mag
6.5x55, 8x57
Nr 21 mag
270Win, 30-06 Spring, 7x64, 6.5x65RWS, 9.3x62
Nr 22 mag
6.5-284, 7mm Rem Mag, 300 Win Mag, 338 Win Mag
Nr 23 mag
6.5WSM, 270WSM, 300WSM
Nr 24 mag
7mm Blaser Mag, 7mmPRC, 300 Blaser Mag, 338 Blaser Mag
Nr 25 mag
300 Norma Mag, 300PRC, 338 Lapua Mag
Nr 26 mag
6.5 PRC, 8.5x55 Blaser
- R8x ten round magazine body can also accommodate any R8 magazine insert, including R8 Rimfire/small calibre kits.
- This enables the magazine to hold and feed other calibres not listed above.
The options are endless
Want to add state of the art ergonomic capabilities to your Blaser system? No problem.
The Options are Endless
Want to reach out and touch things with your R8? No problem.
The Options are endless
Want to reconfigure your R8 from lightweight stalking to heavy weight precision in minutes. No problem!
Contact us to discuss
