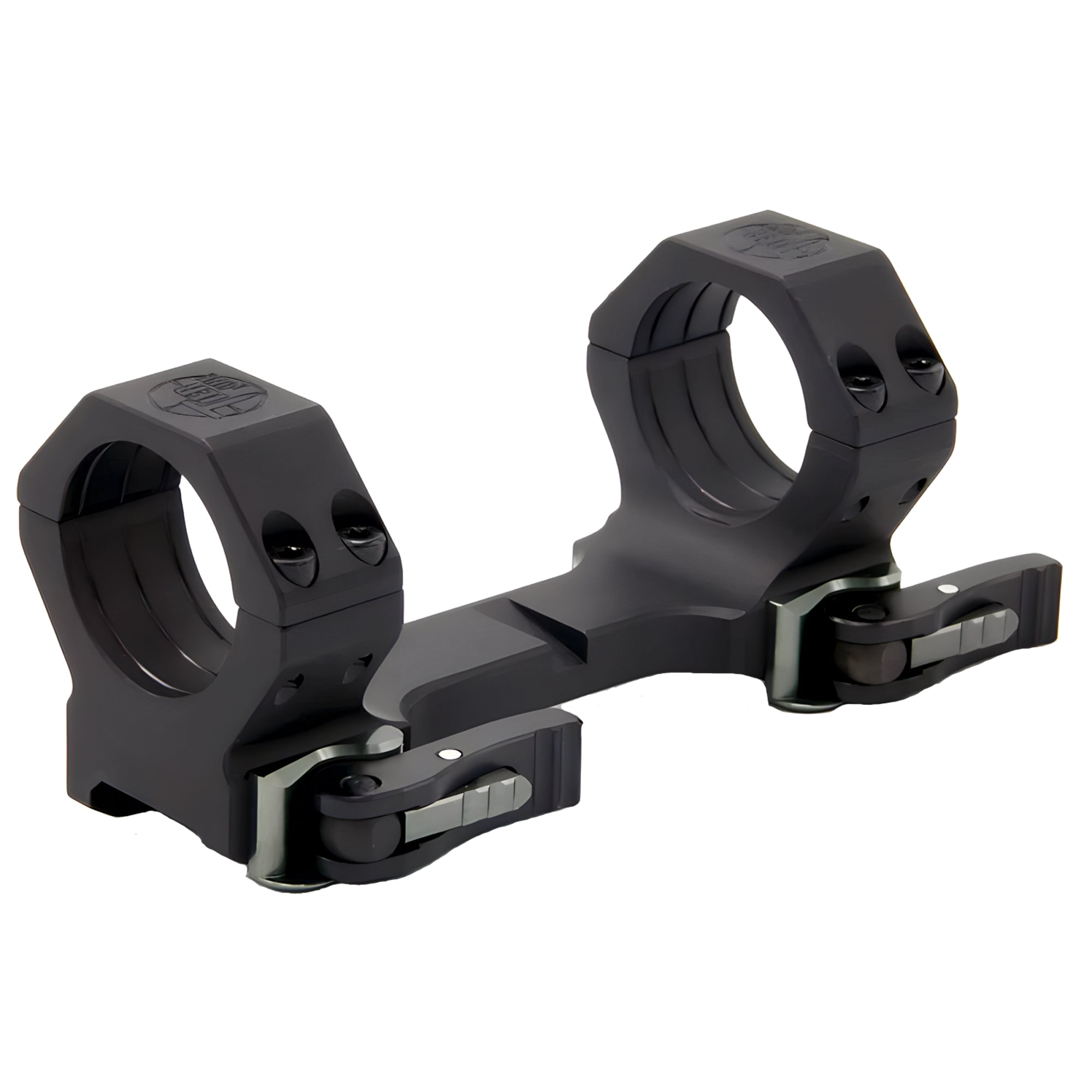

QD MONOMOUNT - LONG SADDLE

THE ULTIMATE HIGH PRECISION SCOPE MOUNTING SOLUTION NOW AVAILABLE IN QUICK DETACH VERSION

Tier One monomounts are engineered for maximum accuracy in the scope mounting solution.

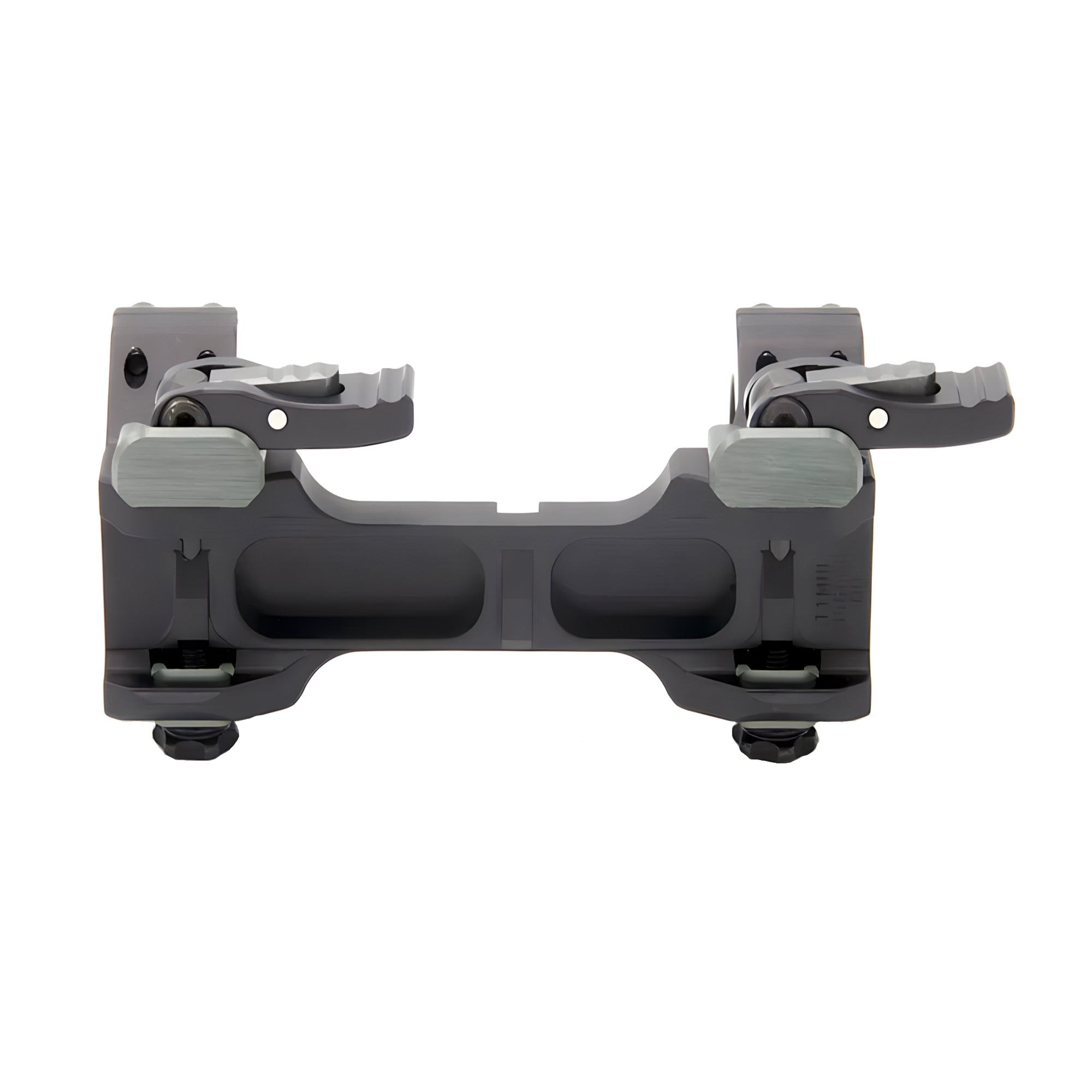

Our super high quality scope mounting solution, the "monomount", is now available in a quick attach/detach version. The proprietary tension lever system of the picatinny rail mounts provide utmost precision and security, ensuring a strong, repeatable mountup.

The key to accuracy in manufacture is to minimise the number of operations required to complete the machining process. By investing in new technology, we have been able to cut the number of operations required from eight to two. By doing this, there is no accuracy loss due to re-setting for different operations.

All Monomounts are made from aluminium 7075T6 and are available in Medium and High configurations, with 6mil

Height Options

Design and Specifications

• Manufactured from High Grade 7075T6 Aluminium for very light weight but excellent rigidity
• Large scope clamping area to withstand heavy recoil.
• Available in 30mm and 34mm tube sizes.
• Made in two heights, medium and high.

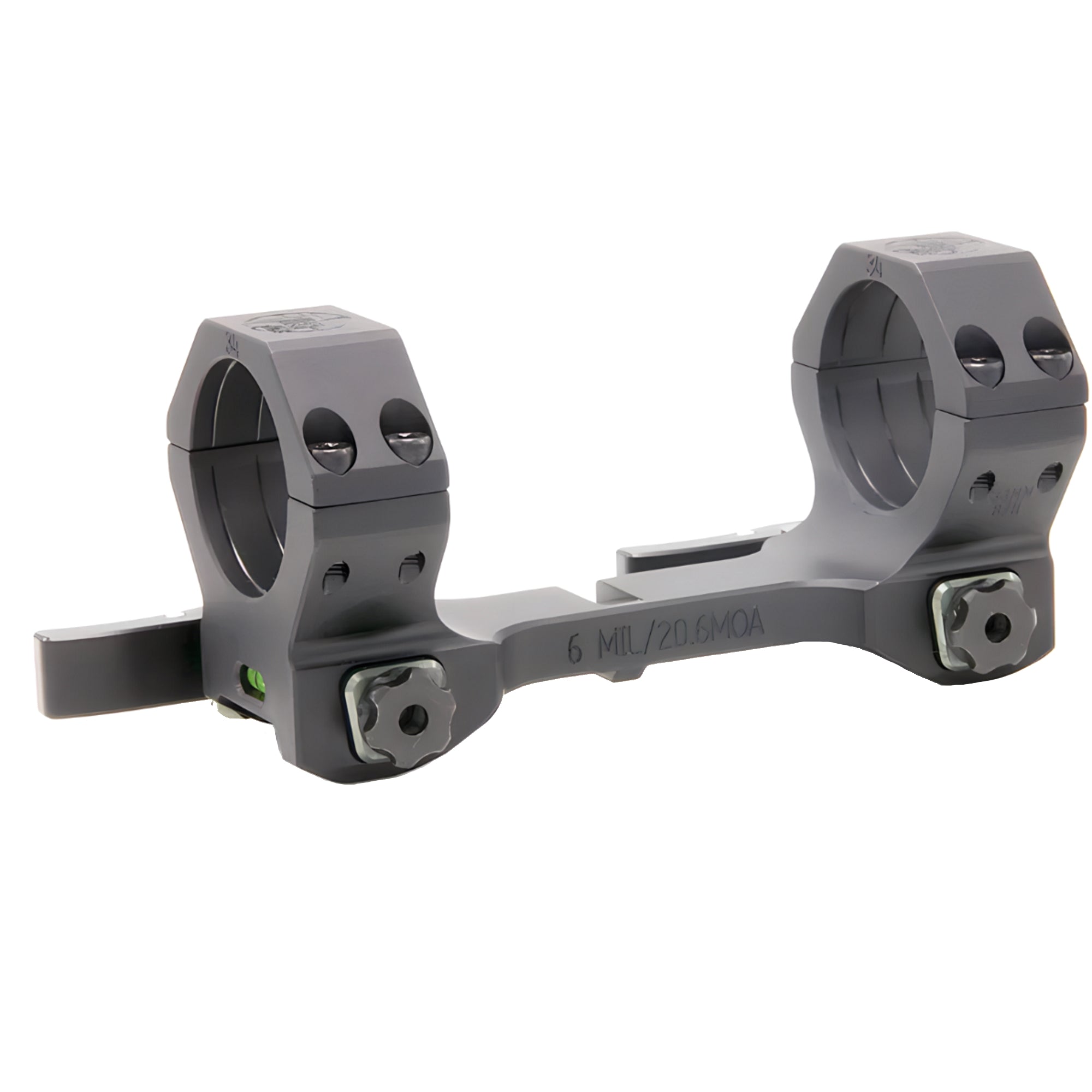

• Made with  6milrad (20.6moa) elevation.
• See chart for specifications.
• Mil-Spec 30 micron hard anodised finish.

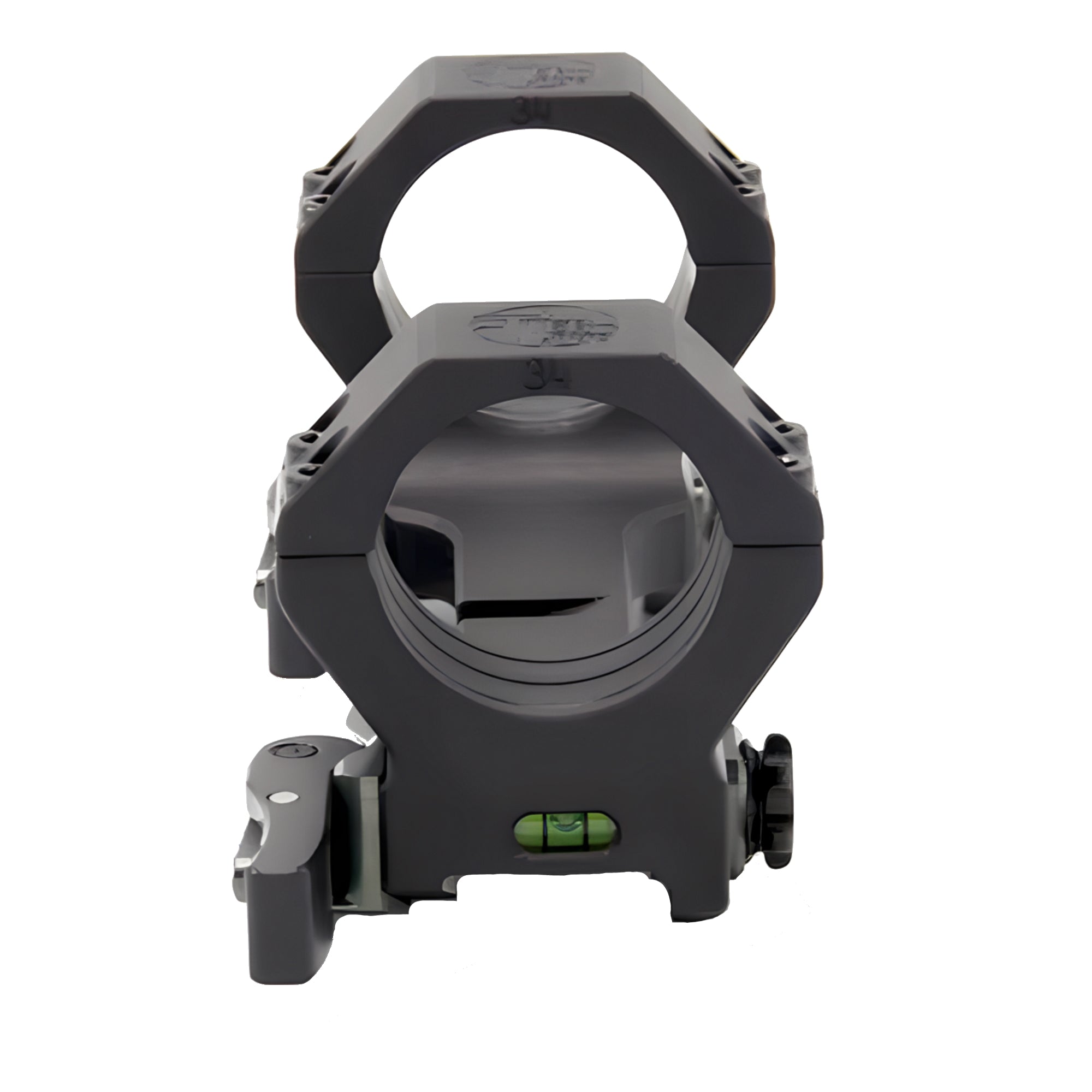

• Built in Anti-Cant bubble.
• Compatible with Tier-One bolt on accessory rails such as ring top pic rails.
• Compatible with Tier-One ring reducers.
• One Hit machining to ensure repeatability.
• Supplied with Levelling Wedge to enable true bore to reticle alignment when setting optic.

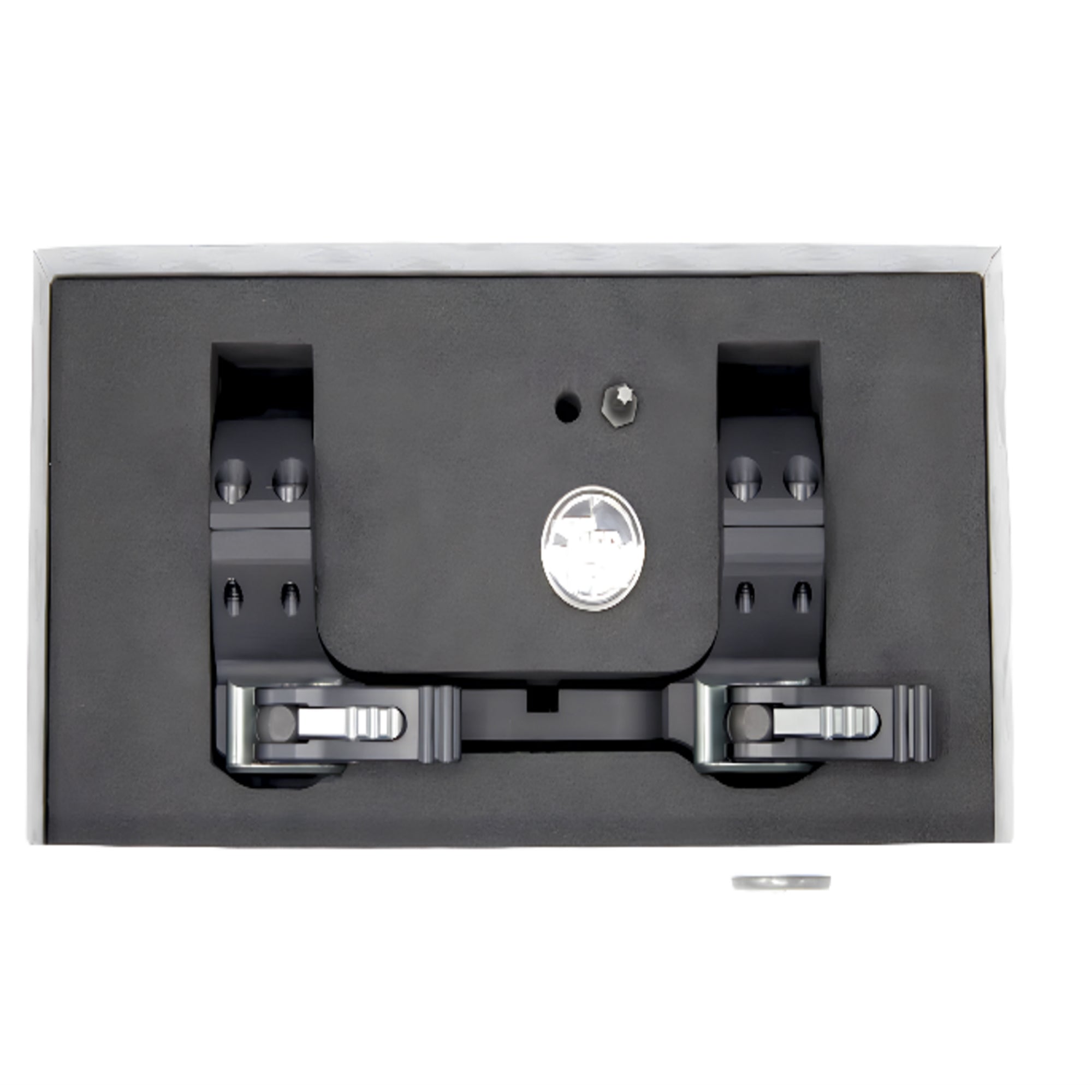

• Supplied in Hard Plastic Case complete with necessary Torx bits.

CLICK HERE FOR MOUNT & RINGS ADD-ONS & ACCESSORIES

• ADD-ON RAILS
• RING REDUCERS

Two options for using a fixed bubble level to level the fall of shot with your scope:

If using a holdover reticle:

• Set up a plumb bob line at about 10 – 30 meters.
• Attach the rings to the rifle.
• Put in the scope, lightly tension the ring cap screws.
• Point the rifle / scope at the plumb bob line.
• Level the bubble level on the rings.
• Rotate the scope in the rings so the vertical cross hair is perfectly vertical to the plumb bob line.
• Correctly tension ring cap screws.
• Have a beer.

If dialling up on the elevation turret:

• This is aka a "Tall Target Test".
• Set up a large target at 50m or 100m. 50m is good because you can shoot tiny groups and the wind has no major effect.
• Use a plumb bob to scribe a perfectly vertical line up the target.
• Mount the rings and scope. Get the scope roughly level in the rings by aligning the vertical cross hair with the vertical plumb bob line while the bubble level is level.
• Properly tension the ring screws.
• Zero in on a aiming spot off the line, ensure the bubble level is level.
• Shoot a group at a aiming spot at the bottom of the vertical line. Ensure bubble level is level.
• Dial up an amount and shoot the next group near the top of the vertical line while you still aim at the aiming spot at the bottom. Ensure bubble level is level.
• Note if the high group is to the left or right of the vertical line:
• If it is left; rotate the scope in the rings clockwise a small amount.
• If it is right; rotate the scope in the rings anti-clockwise a small amount.
• Be sure to re-tension the rings correctly. This is a good moment to assess if your scope position and eye relief is comfortable for you.
• Repeat groups until the upper shots group perfectly on the vertical line. Ensure bubble level is level for each shot and group.
• Use this test and some maths to check your scope elevation dial is indeed applying the correct elevation selected. Not all do. Good ballistic solvers have an input to correct for this.
• Not all scopes have the crosshairs aligned perfectly vertical when the elevation dial has the shots tracking perfectly vertical. This is a common issue with anything less than top tier optics.
• Beer.

Note:

• With second focal plane reticle scopes, use the zoom setting you will use in the field when aligning or shooting each group; as many second focal plane scopes will shift POI with zoom changes.
