MODULAR AND EXTREMELY PRECISE MUZZLE FORWARD RIMFIRE SUPPRESSOR FOR YOUR .22 OR .17
The CMM-6 brings the advantages of modularity to rimfire suppressors. Precision engineered with extreme performance on both 22 and 17 calibres.
Intended Use
All 22LR rifles and pistols and also Air rifles. All 22WMR rifles. All .17M2 and .17HMR rifles. Precision 22LR shooters such as those competing in 22 PRS competitions will find this unit ideal.
Design Features
- Precision Aluminium Alloy modular baffles.
- Modularity gives several advantages:
- Take it apart to clean it. 22L can produce a lot of build up in a suppressor, get in there and huck it out if you want.
- Tune your barrel to the ammo by experimenting with different suppressor lengths. Some rimfire loads in some rifles can be made to shoot more accurately by adding or removing mass at the muzzle. Experiment with different numbers of baffles installed. Google barrel harmonic theory.
- Reduce or increase it's length to suit the aesthetic of your rifle or the purpose of the rifle.
- Stocked with 1/2-20 and 1/2-28 threads.
- Stocked in .22 and .17 calibres.
- Muzzle forward design to clear modular handguards.
- Important note on reduction performance: Unique to A-Tec, our suppressors are tested to the latest MIL-STD-1474D military standard which is the most stringent and difficult standard to test to. Research shows our competitors do not test to this standard. For comparing to competitors products we prefer to let our reputation do the talking but you will observe our suppressors performing 5-10% better for a stated dB and significantly better for dB reduction vs. weight & length.
- A-Tec have only one grade of precision: Match Grade. A-Tec suppressors are second to none for concentricity, straightness and fine dimensional tolerances. This is especially evident in our bore apertures which are tight to the projectile to maximise sound reductive effect. To get peak performance from an A-Tec suppressor, one's rifle muzzle must be correctly crowned, threaded and shouldered.
Specifications
| OVERALL PERFORMANCE | 37 DB(C) for22LR, 22 DB(C) for .17HMR |
| SILENCER WEIGHT | 130gm |
| DIAMETER | 30mm |
| OVER BARREL LENGTH | 12mm |
| ADDED LENGTH | 170mm |
| TOTAL LENGTH | 182mm |
| MATERIAL | Aluminium |
| SURFACE TREATMENT | Anodised |
| AVAILABLE CALIBRES | .22, .17 |
| THREADS | 1/2-20 and1/2-28 |
What comes in the box?
- Suppressor
- Instruction manual

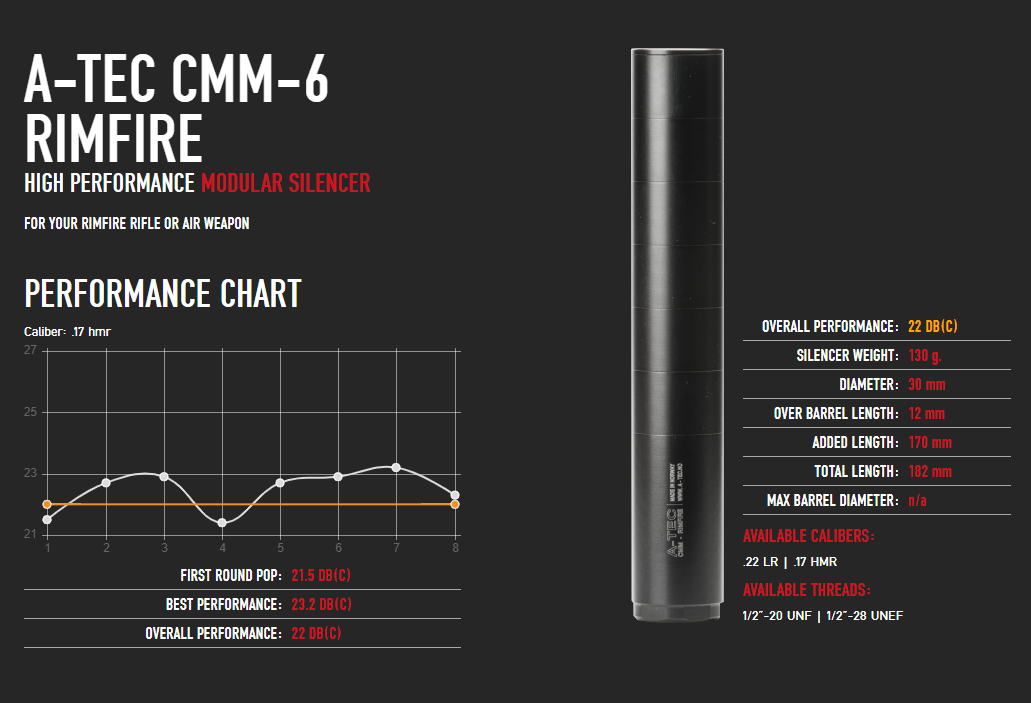

A-Tec Rifle Suppressor Quick Reference
In selecting your new suppressor for your purpose; consider your desired balance of effect vs. weight, size and heat resistance. Click image for a close-up:
How does this compare to the rest of our range?
Check out our Giant Suppressor Comparison Document
This requires a firearms licence to purchase; this must be presented on pick up, or for the item to be couriered to you a firearms mail order form is required.
We will contact you after purchase with the appropriate form and what is required.
